Delta Weight Sync in SkyRL

In disaggregated RL, the trainer and inference nodes are in separate clusters. The lack of high-speed interconnect like RDMA between training and inference workers makes traditional weight transfer methods like NCCL broadcast infeasible. SkyRL supports delta weight updates, where we transmit compressed deltas (i.e changes in the weights) during the weight update. This allows us to perform weight updates for large 100B+ parameter models over cloud storage.

In this example we will train Qwen/Qwen2.5-1.5B-Instruct on the GSM8K dataset with delta weight updates.

Delta weight sync: Architecture

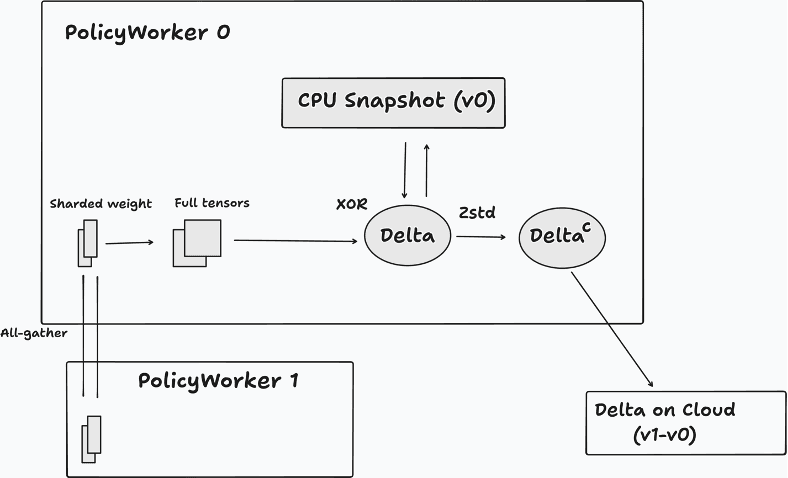

Here's a brief overview of operations performed by the trainer during weight transfer:

1. Store a CPU based snapshot of the previous version of the weights in uint8 on rank 0
2. During a weight sync, iterate over the parameters chunk by chunk and all gather the weights for a chunk
3. Copy a chunk from GPU to CPU
4. Convert to bytes and compute XOR deltas for all the weights
5. Compress the deltas using lossless compression and store the deltas on CPU
6. Update the CPU based snapshot to use the new uint8 bytes for the current weight chunk
7. After computing deltas for all the weights, publish to cloud storage

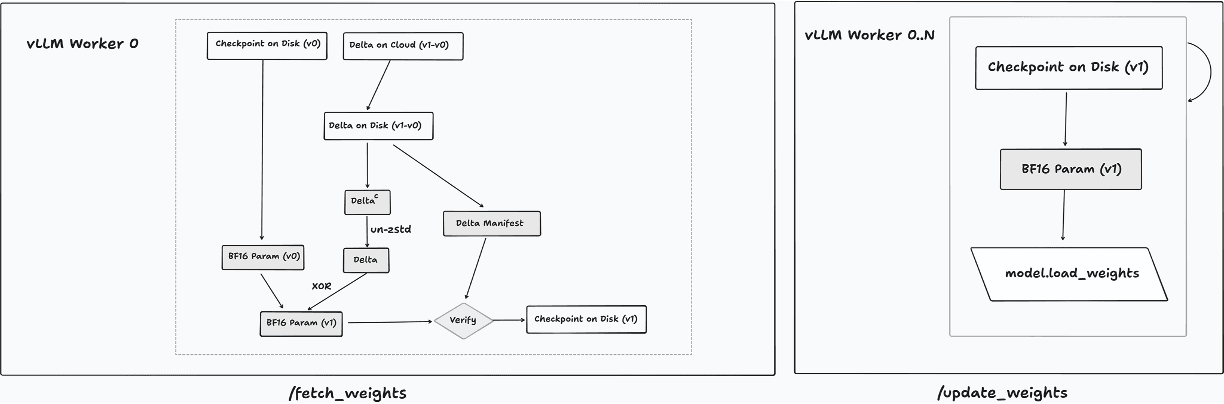

On the inference side there is broadly two operations:

1. Fetch + Process: Fetch the delta weights from the trainer and process them to compute the new updated weights
2. Load: Load the new weights into the inference engines. This can involve additional postprocessing ex: quantization

The overall inference flow is:

1. Split up Fetch + Process and Load into two separate stages
2. Run Fetch + Process before pausing generation
3. Pause generation and run Load

In summary, the trainer publishes compressed XOR deltas to a shared location, the inference side pulls and applies them into a local checkpoint before pausing generation, and the paused phase reloads from that prepared checkpoint.

Single Cluster, Non-Colocated training

Data Preparation

Prepare GSM8K data first:

uv run --isolated examples/train/gsm8k/gsm8k_dataset.py --output_dir "$HOME/data/gsm8k"

Run training

For Google Cloud Storage:

SYNC_DIR=gs://<bucket>/<prefix>/$(date +%Y%m%d_%H%M%S) \
bash examples/train/delta_weight_sync/run_gsm8k_qwen1p5b_gcs.sh

For NFS or another shared POSIX filesystem:

SYNC_DIR=/mnt/shared_storage/skyrl-delta-sync/$(date +%Y%m%d_%H%M%S) \
bash examples/train/delta_weight_sync/run_gsm8k_qwen1p5b_nfs.sh

For S3:

SYNC_DIR=s3://<bucket>/<prefix>/$(date +%Y%m%d_%H%M%S) \
bash examples/train/delta_weight_sync/run_gsm8k_qwen1p5b_s3.sh

Disaggregated RL

We also show an example of disaggregated RL where the training and inference workers can be run on separate clusters and sync via S3.

Inference cluster: Spin up inference servers

Utilize the serve entrypoint to spin up standalone inference servers:

SYNC_DIR=s3://<bucket>/<prefix>/$(date +%Y%m%d_%H%M%S) \
bash examples/train/delta_weight_sync/disagg/serve_qwen1p5b_s3.sh &> serve_qwen1p5b.log

Note down the proxy and server urls from the logs:

(skyrl_entrypoint pid=3397706) 2026-07-26 12:35:14.068 | INFO     | skyrl.backends.skyrl_train.inference_servers.setup:create_inference_servers:212 - HTTP Inference: proxy_url=http://10.1.138.226:52061, server_urls=['http://10.1.138.226:8000', 'http://10.1.138.226:8100', 'http://10.1.138.226:8202', 'http://10.1.138.226:8300'], colocated=False
(skyrl_entrypoint pid=3397706) 2026-07-26 12:35:14.068 | INFO     | __main__:run:65 - Inference servers are up.
(skyrl_entrypoint pid=3397706)   proxy_url (data plane):    http://10.1.138.226:52061
(skyrl_entrypoint pid=3397706)   server_urls (control plane): ['http://10.1.138.226:8000', 'http://10.1.138.226:8100', 'http://10.1.138.226:8202', 'http://10.1.138.226:8300']
(skyrl_entrypoint pid=3397706) Point your client at proxy_url for OpenAI-compatible requests. Press Ctrl+C to shut down.
(VLLMServerActor pid=3400100)

Training Cluster: Data Preparation

On the training cluster, prepare GSM8K data first:

uv run --isolated examples/train/gsm8k/gsm8k_dataset.py --output_dir "$HOME/data/gsm8k"

Training Cluster: Run training

Using the proxy and server urls, launch disaggregated training in the training cluster:

SYNC_DIR=s3://<bucket>/<prefix>/$(date +%Y%m%d_%H%M%S) \
EXTERNAL_PROXY_URL="http://my-ip/my-port" \
EXTERNAL_SERVER_URLS="[server_url1,server_url2,server_url3,server_url4]" \
bash examples/train/delta_weight_sync/disagg/run_gsm8k_qwen1p5b_s3.sh &> train_qwen1p5b_disagg.log
