Multi-Turn Multi-Image VLM RL on VisGym

In this example we train a vision-language model to solve VisGym tasks — gymnasium-style environments (e.g. maze_2d/easy) where every environment step returns a new image observation. The model sees an image, reasons, emits an action, and receives the next rendered image as part of the next user turn. This is the multi-image multi-turn VLM pattern described in the tutorial.

Source code: examples/train/visgym/.

VisGym Setup

1. Clone VisGym anywhere (the repo root is conventional):

   git clone https://github.com/anyscale/VisGym.git

2. Add a [tool.uv.sources] entry to the root pyproject.toml pointing at your clone. Use the absolute or repo-relative path:

   [tool.uv.sources]
   # ...existing entries (skyrl-gym, torch, vllm override from the VLM tutorial, etc.)...
   gymnasium = { path = "./VisGym", editable = true }

3. Add gymnasium as a direct dep so the source override actually binds — append it to the skyrl-train optional-dependencies list in the root pyproject.toml:

   [project.optional-dependencies]
   skyrl-train = [
       # ...existing entries...
       "gymnasium",
   ]

The next uv run --isolated --extra fsdp … invocation (used by run_visgym_from_*.sh) will pick up the local VisGym checkout automatically. Remove these edits before committing any changes.

Task Overview

VisGym environments are gymnasium.Env instances that return rendered images as observations. The example defaults to maze_2d/easy, a 2D navigation maze where:

• The env renders the maze (walls, agent position, goal) as an RGB image.
• The model chooses a direction to move.
• The env steps, re-renders, and sends back the new state.
• The episode ends when the agent reaches the goal, hits a termination condition, or runs out of turns.

Reward is sparse — delivered at the terminal step based on whether the task was solved.

Two Recipes

VisGym ships with two training recipes that differ in how the model is asked to output actions. The reason there are two: the vanilla instruct model (Qwen/Qwen3-VL-8B-Instruct) struggles to reliably produce the structured tuple action format (('move', 0)) — it emits code fences, mis-matched quotes, or degenerates into prose. Instead, the instruct recipe uses a simpler <action>keyword</action> XML tag that the base model is able to consistently produce. Starting from an SFT checkpoint bypasses this issue, and produces a higher terminal success rate.

run_visgym_from_sft.sh — tuple-action, SFT warm-start

Starts from a pre-SFT'd Qwen3-VL checkpoint that already emits structured output:

<observation>I see a maze with the agent at (1,1) and the goal at (3,3)...</observation>
<justification>The goal is east-southeast, so I should move east first.</justification>
<action>('move', 0)</action>

Reward combines task success with a format reward (0.8 task + 0.2 format) so the model emits <observation>...</observation> and <justification>...</justification> reasoning. The base SFT model is trained to only produce ('move', 0). KL regularization is off.

See examples/train/visgym/env_sft.py for the action-parsing logic.

run_visgym_from_instruct.sh — keyword-action, from vanilla instruct

Starts from Qwen/Qwen3-VL-8B-Instruct without an SFT warm-start. The action format is a simple keyword tag:

<action>left</action>

where the keyword is one of left, right, up, down, stop. Reward is task-only (no format shaping). We found that due to the low starting reward, a format reward caused the model to over-index on formatting.

See examples/train/visgym/env_instruct.py — the action extractor is a simple regex match for <action>keyword</action> tags. The env sets relaxed=True on the underlying VisGym env so the gymnasium env accepts keyword inputs.

Env Contract

Both recipes share the multi-image-per-turn contract. On each step():

obs, reward, terminated, truncated, info = self.visgym_env.step(extracted)
if not done:
    image = self.visgym_env.render()               # new RGB frame
    obs_msg = make_image_message(feedback, image)   # {role, content=[text, image_url]}
    observations = [obs_msg]

The observation is an OpenAI-format message with both a text feedback string and a base64-encoded image in an image_url content part. These accumulate in the conversation, so by turn N the model has seen N+1 images.

examples/train/visgym/utils.py provides make_image_message(), which handles the RGB-array → data-URI conversion consistently across both recipes.

Data Preparation

Because VisGym generates its prompts (and images) dynamically from the env's state, the dataset is just a list of "tickets" that tell SkyRL which env to run. It's auto-generated on first run:

uv run examples/train/visgym/dataset.py \
  --env_id maze_2d/easy \
  --num_rows 256 \
  --output_dir ~/data/visgym_maze_2d_easy

Each row carries env_class=visgym, visgym_env_id, and optionally a deterministic seed for evaluation.

Training Configuration

Key overrides from both scripts:

_SKYRL_USE_NEW_INFERENCE=1 uv run --isolated --extra fsdp \
  python examples/train/visgym/entrypoint.py \
  --env_variant sft \
  trainer.policy.model.path="$MODEL_PATH" \         # SFT checkpoint
  trainer.strategy=fsdp2 \
  # VLM flags
  generator.vision_language_generator=true \
  generator.batched=false \
  trainer.use_sample_packing=false \
  # Multi-turn rollouts
  generator.max_turns=15 \
  generator.inference_engine.async_engine=true \
  generator.sampling_params.temperature=0.7 \
  # Algorithm — task+format reward, no KL
  trainer.algorithm.advantage_estimator="grpo" \
  trainer.algorithm.use_kl_loss=false \
  environment.env_class=visgym \

_SKYRL_USE_NEW_INFERENCE=1 uv run --isolated --extra fsdp \
  python examples/train/visgym/entrypoint.py \
  --env_variant instruct \
  trainer.policy.model.path="Qwen/Qwen3-VL-8B-Instruct" \
  trainer.strategy=fsdp2 \
  # Same VLM flags as above
  generator.vision_language_generator=true \
  generator.batched=false \
  trainer.use_sample_packing=false \
  # More turns, higher temperature, KL regularization on
  generator.max_turns=18 \
  generator.sampling_params.temperature=1 \
  trainer.algorithm.use_kl_loss=true \
  trainer.algorithm.kl_loss_coef=0.005 \
  environment.env_class=visgym \

Some key recipe differences:

• The Instruct recipe runs more turns (18 vs 15) which helps produce a higher initial success rate.
• The SFT recipe needs a slightly lower temperature compared to the Instruct recipe (0.7 vs. 1). We found the SFT model unable to solve any environment with temperature 1.
• The Instruct recipe uses a KL loss to prevent reasoning collapse.

Launching

# Instruct recipe — no SFT checkpoint required
bash examples/train/visgym/run_visgym_from_instruct.sh

# SFT recipe — point MODEL_PATH at your checkpoint
MODEL_PATH=/path/to/your/sft_ckpt bash examples/train/visgym/run_visgym_from_sft.sh

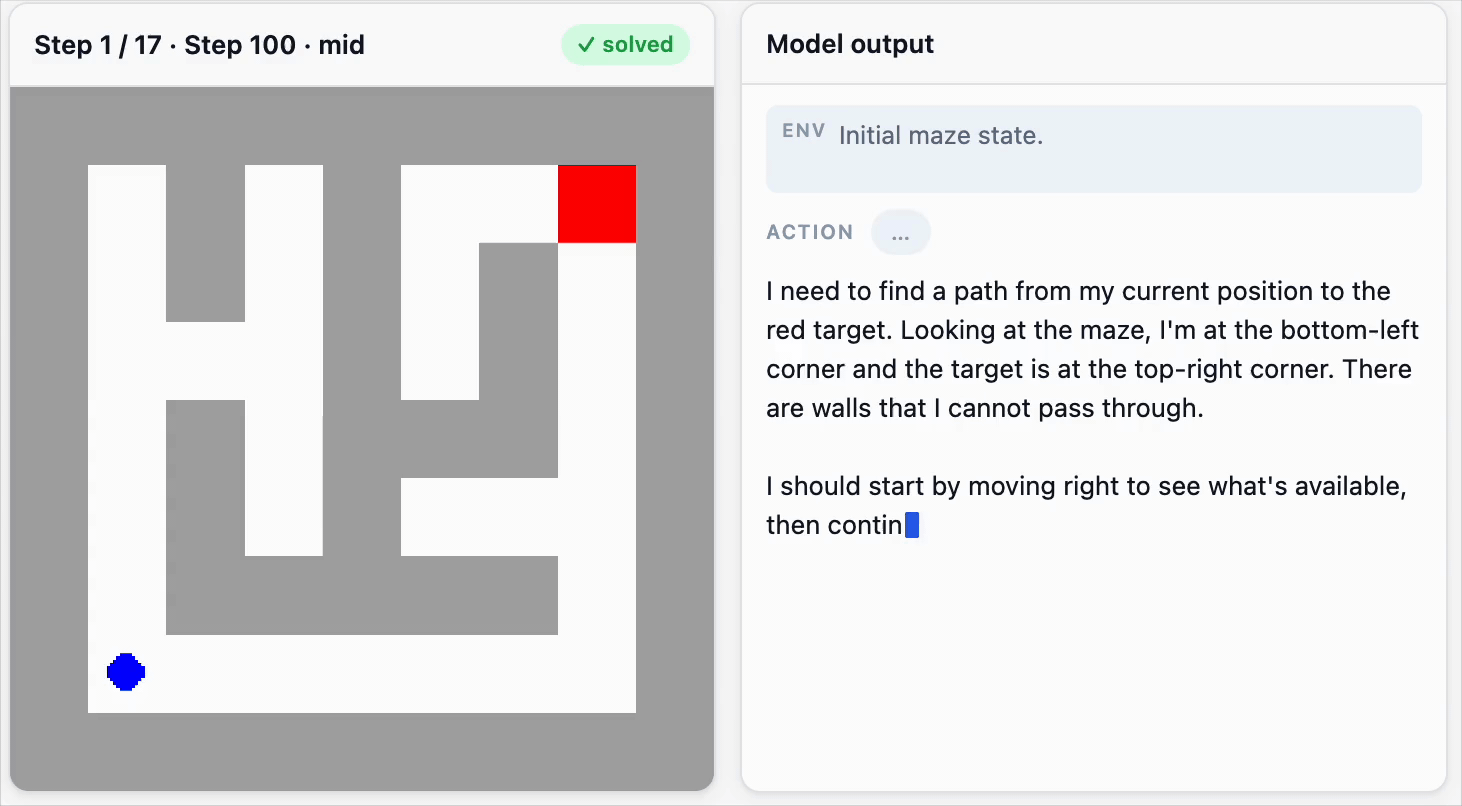

Example Rollout

Single trajectory from the from-instruct recipe (no SFT warm-start) on maze_2d/easy with kl_loss_coef=0.005. Each turn renders a fresh maze frame; the model accumulates them across the conversation.

Results

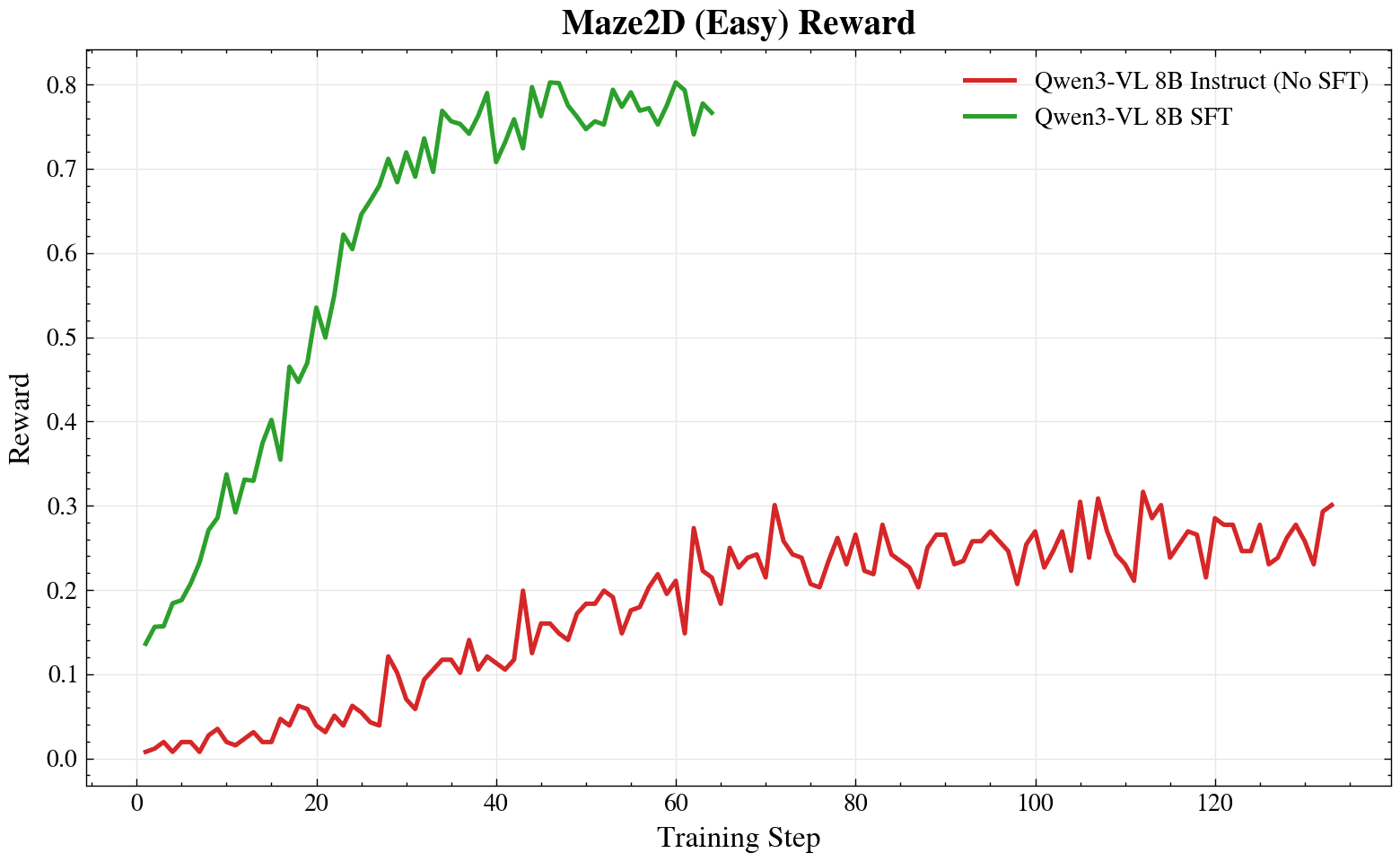

Reward curve on maze_2d/easy.

What's Next

• Geometry-3K example — single-image multi-turn VLM RL with tool calling.
• Vision-Language RL tutorial — shared setup background.
• Creating a New Environment — build your own env.

Citation

VisGym is a suite of 17 multi-step visual environments (symbolic puzzles, real-image understanding, navigation, manipulation) introduced by Wang et al. (2026). Project page: visgym.github.io. If you use this example in your work, please cite:

@misc{wang2026visgymdiversecustomizablescalable,
      title={VisGym: Diverse, Customizable, Scalable Environments for Multimodal Agents},
      author={Zirui Wang and Junyi Zhang and Jiaxin Ge and Long Lian and Letian Fu and Lisa Dunlap and Ken Goldberg and XuDong Wang and Ion Stoica and David M. Chan and Sewon Min and Joseph E. Gonzalez},
      year={2026},
      eprint={2601.16973},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={https://arxiv.org/abs/2601.16973},
}
